Exoflate
A New Type of Physiotherapy
No spacial requirements
Non-robotic exoskeleton
Exoflate is a gentle air pressure device that performs physiotherapy and medical massage.
It promotes improved health and prevents further diseases by efficiently strengthening and enhancing the user's muscles, especially for those who have difficulty with traditional exercises.
Secure Exoflate into position:
Elastic fabric stretches and fits legs of different sizes and lengths. The triangle is an indicator for easy and accurate positioning onto the knee.
Quick adjustment and locking:
Exoflate is easy to put on and remove. Bandages allow for adjustment to different lengths and widths of limbs.
One-click:
For people with difficulties reaching their ankle, Exoflate has a one-click design which is easy to put on.
Exoflate consists of three key parts: an air pump, air tube, and soft exoskeleton. This sensitive air-pressure device covers and stimulates the user's legs; elevating blood circulation, and promoting self-recovery and growth of muscle cells.
For people with mobility difficulties or muscle injured, exercise is difficult compare with others; hence it becomes a hypokinetic circle that muscle is deteriorating and patients are more unwilling to exercise. In the end, it leads to diseases, the risks of falls and more injury.

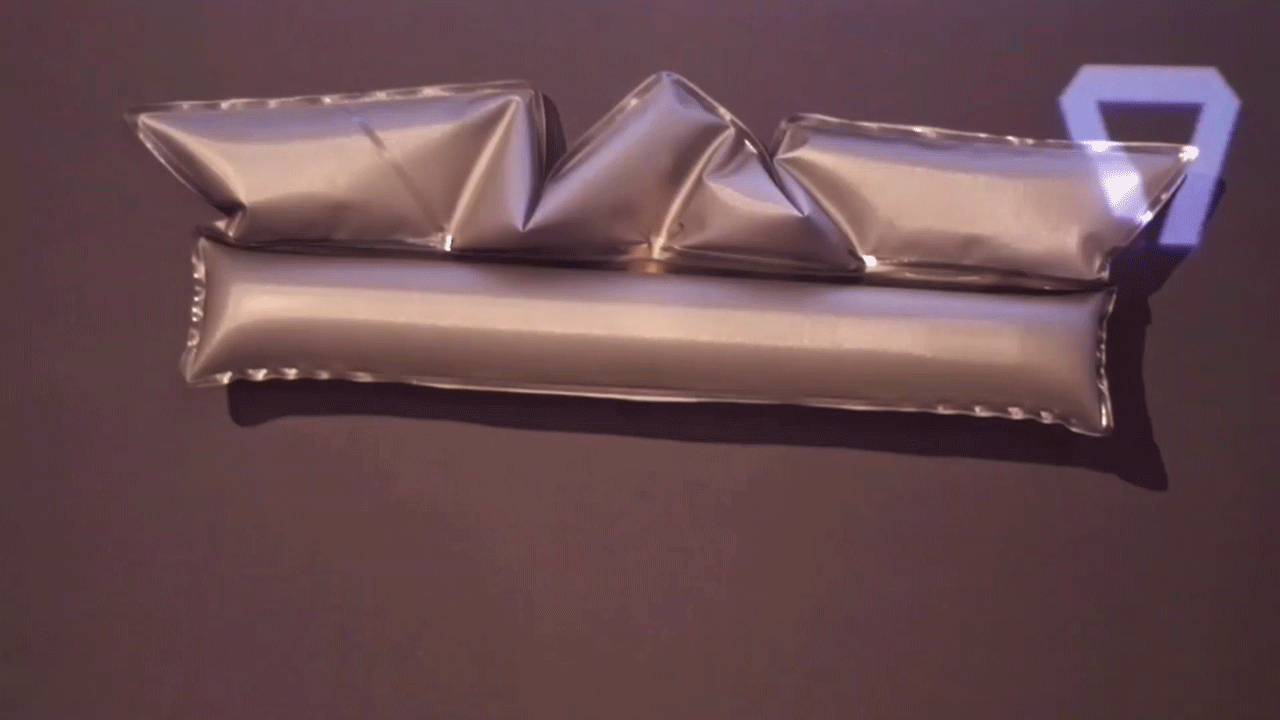

Using different stucture of air bags design to simulate therapy movement.
Making the device can apply to more bodies limbs.

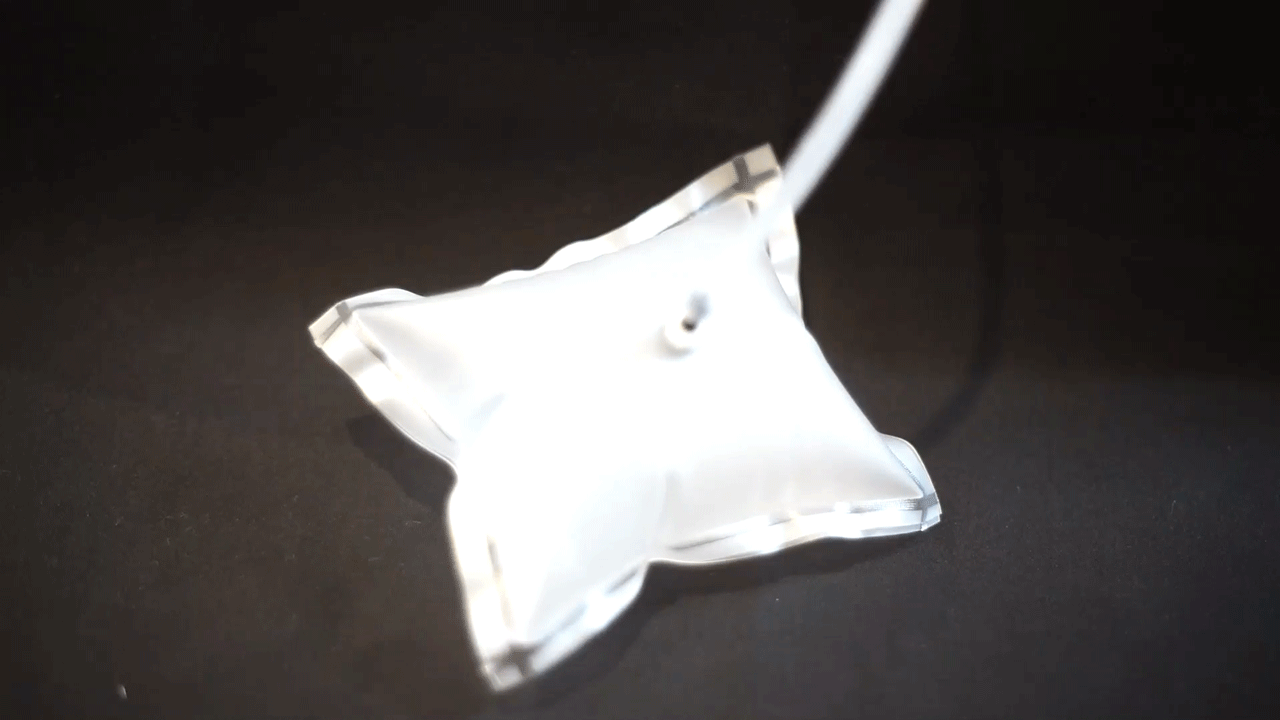

Air pressure testing to simulate hand press.
Air massage to help blood circulation.
Electric valves contral different air channal into different bags.
Air massage contral
Scale down pumps and valve pressure control.
Let devise much lighter and easy to carry.
External Electric Valve contral, making tube layout more simple and pump devise can scale down.
Rechargable Battery for 2hr-3hr using, also 12V power supply supported.
Sketch

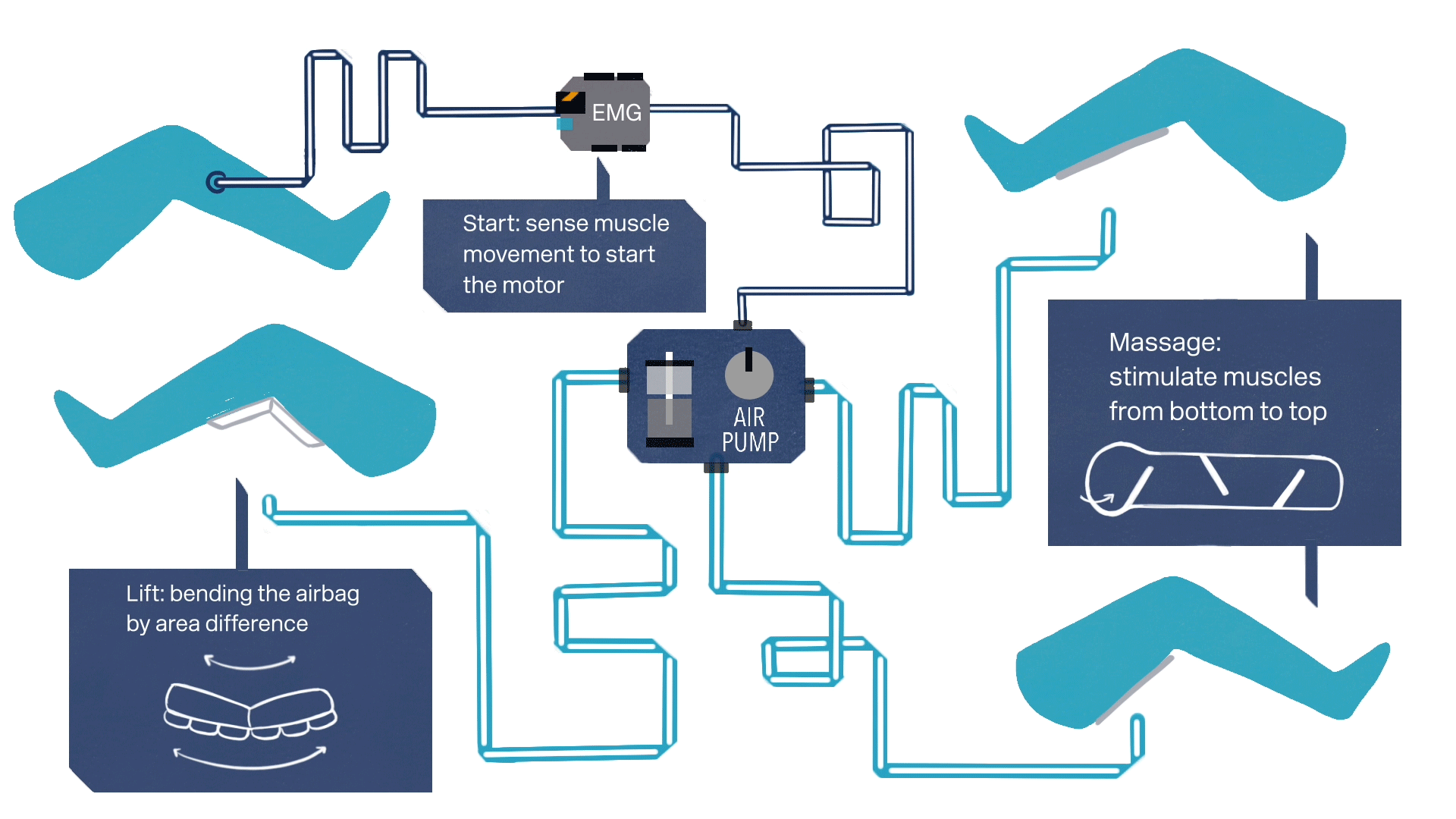

Structure of theory

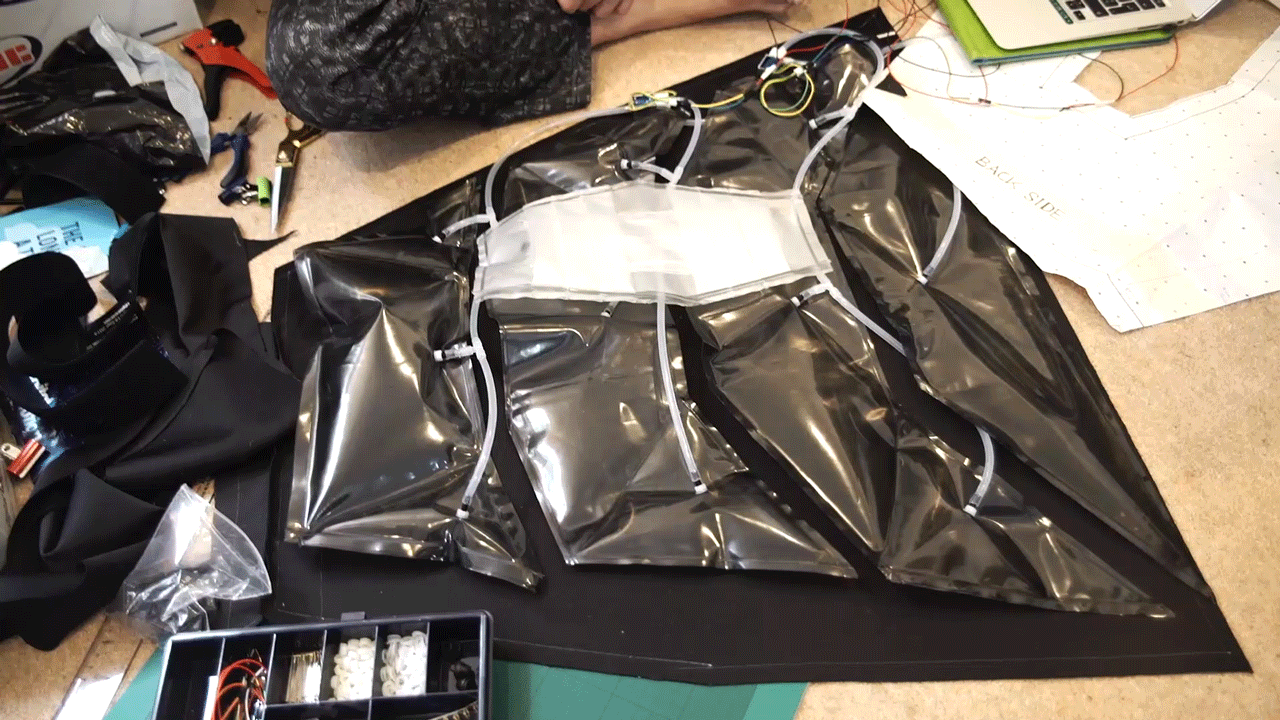

Experience and Prototyping

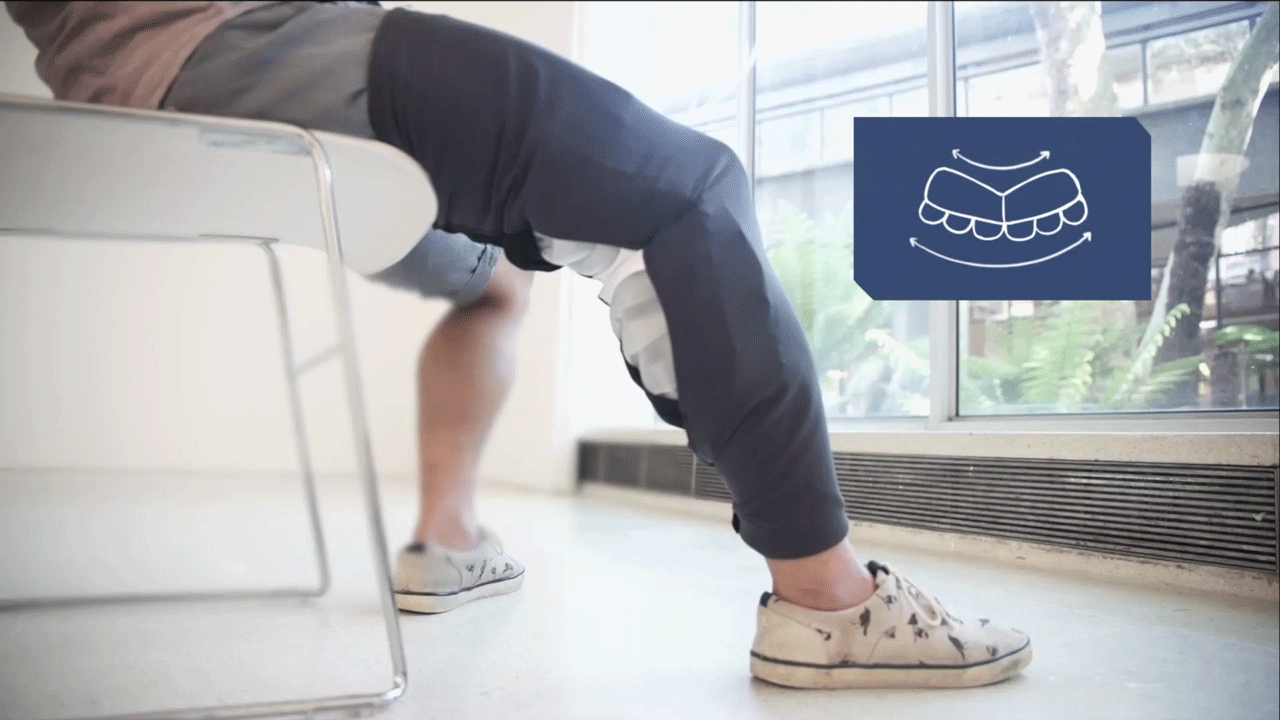

User experience
